Say goodbye to ordinary. The E-Z-GO® Freedom® RXV® is designed to help you live larger.

Engine

Engine 4-cycle
Displacement 24.5 cu in (401 cc)
Cooling System Air-cooled
Engine Power 13.5 hp (10 kW) J1940 Standard
Valve train Single cylinder OHV with hemispheric combustion chamber
Air Cleaner Industrial-rated dry filter
Lubrication Pressurized oil system
Oil Filter Spin on

Fuel System

Fuel System Closed-Loop Electronic Fuel Injection

Performance

Top Speed 19.0 mph (31 kph)

Electric

Electrical System: Starter/Generator, Solid State Regulator

Battery

Battery One, 12-volt Maintenance-Free

Drivetrain

Drivetrain Automatic, Continuously Variable Transmission (CVT)
Transmission Differential w/ Helical Gears
Gears Forward-Reverse
Axle Capacity, Rear Ratio: 11:47:1 (forward) | 14:35:1 (reverse)
Steering Double-ended Rack and Pinion

Chassis

Chassis Body Finish: Injection Molded TPO
Frame Type Welded Steel with Powder-Coat Protection

Suspension

Front Suspension Independent A-Arm Coil Over Shock
Rear Suspension Mono-Leaf Springs with Hydraulic Shock Absorbers

Brakes

Brake System Type Rear Wheel Mechanical Self-Adjusting Drums
Parking Brake Self-Compensating, Single-Point Engagement

Wheels & Tires

Front Wheel Track: 35.5 in (90 cm)
Rear Wheel Track: 38.0 in (97 cm)
Front Tire 18 x 8.50-8 (4-ply rated)
Rear Tire 18 x 8.50-8 (4-ply rated)

Dimensions

Dimensions Outside Clearance Circle: 19.0 ft (5.8 m)
Overall Length 94.5 in (240 cm)
Overall Width 47.0 in (119 cm)
Overall Height Without roof: 45.7 in (116 cm) | With roof: 68.5 in (174 cm)
Wheelbase 65.7 in (167 cm)
Ground Clearance 3.3 in (8 cm)

Capacities

Fuel Capacity 5.96 gallons (22.6 L) Tank
Seating Capacity 2-Passenger
Cargo Capacity 800 lb (360 kg)
Towing Capacity 3 E-Z-GO Golf Cars with Approved Permanent Tow Bar

Weight

Curb Weight 747 lb (339 kg)



Green Factors

• Say goodbye to ordinary. The E-Z-GO® Freedom® RXV® is designed to help you live larger.

Motor

Power System Type 48-Volt AC
Motor Power 4.4 hp (3.3 kW) Continuous

Performance

Top Speed 17.5 mph -19.5 mph (28 kph - 31 kph) | Controller: 235-amp solid-state controller

Electric

Electrical System: 48-Volt

Battery

Battery Four, 12-Volt Deep Cycle
Battery Charger Type Lead Acid Charger: SC-48 (3.0 M) DC Cord

Drivetrain

Drivetrain Motor Shaft Direct Drive
Transmission Limited Slip Differential
Gears Forward-Neutral-Reverse Integrated
Axle Capacity, Rear Ratio: 16.99:1
Steering Double-ended Rack and Pinion
Starter Pedal

Chassis

Chassis Body Finish: Injection Molded TPO
Frame Type Welded Steel with Powder-Coat Protection

Suspension

Front Suspension Independent A-Arm Coil Over Shock
Rear Suspension Mono-Leaf Springs with Hydraulic Shock Absorbers

Brakes

Brake System Type Induction Motor
Parking Brake Automatic Electro-Magnetic

Wheels & Tires

Front Wheel Track: 35.5 in (90 cm)
Rear Wheel Track: 38.0 in (97 cm)
Front Tire 18 x 8.50-8 (4-ply rated)
Rear Tire 18 x 8.50-8 (4-ply rated)

Dimensions

Dimensions Outside Clearance Circle: 19.2 ft (5.8 m)
Overall Length 94.5 in (240 cm)
Overall Width 47.0 in (119 cm)
Overall Height Without roof: 45.7 in (116 cm) | With roof: 68.5 in (174 cm)
Wheelbase 65.7 in (167 cm)
Ground Clearance 3.3 in (8 cm)

Capacities

Seating Capacity 2-Person
Cargo Capacity 800 lb (363 kg)
Towing Capacity 3 E-Z-GO Golf Cars with Approved Permanent Tow Bar

Weights

Weight Without batteries: 565 lb (256.3 kg)
Curb Weight 905 lb (410.5 kg)



Ignite your senses, especially your sense of excitement, with the E-Z-GO® Freedom® TXT®.

Engine

Engine 4-cycle
Displacement 9.15 cu in (150 cc)
Cooling System Air Cooled
Engine Power 11.5 hp (8.6 kW) J1995 Standard
Valve train Single cylinder OHV
Air Cleaner Industrial-Rated Dry Filter
Lubrication Pressurized Oil System
Oil Filter Removable Oil Screen

Fuel System

Fuel System Closed-Loop Electronic Fuel Injection

Performance

Top Speed 19.0 mph ± 0.5 mph (31 kph ± 0.8 kph)

Battery

Battery One, 12-volt Maintenance-Free

Drivetrain

Drivetrain Continuously Variable Transmission (CVT)
Transmission Differential with Helical Gears
Gears Forward-Reverse
Axle Capacity, Rear Ratio: 11:47:1 (Forward) | 14:35:1 (Reverse)
Steering Self-Compensating Rack and Pinion
Starter Pedal

Chassis

Chassis Body Finish: Injection Molded TPO
Frame Type Welded Steel with Powder-Coat Protection

Suspension

Front Suspension Leaf Springs with Hydraulic Shock Absorbers
Rear Suspension Leaf Springs with Hydraulic Shock Absorbers

Brakes

Brake System Type Rear Wheel Mechanical, Self-Adjusting Drum
Parking Brake Self-Compensating, Single Point Engagement

Wheels & Tires

Front Wheel Track: 34 in (86 cm)
Rear Wheel Track: 38.5 in (98 cm)
Front Tire 18 x 8.50-8 (4-ply rated)
Rear Tire 18 x 8.50-8 (4-ply rated)

Dimensions

Dimensions Outside Clearance Circle: 19.2 ft (5.8 m)
Overall Length 93.5 in (237 cm)
Overall Width 47.0 in (119 cm)
Overall Height Without roof: 47.5 in (121 cm) | With roof: 67.5 in (171 cm)
Wheelbase 66.0 in (168 cm)
Ground Clearance 4.25 in (10.8 cm)

Capacities

• Fuel Capacity 5.96 Gallon (22.6 L) Tank
  Seating Capacity 2-Passenger
  Cargo Capacity 500 lb (227 kg)
  Towing Capacity 3 E-Z-GO Golf Cars with Approved Permanent Tow Bar

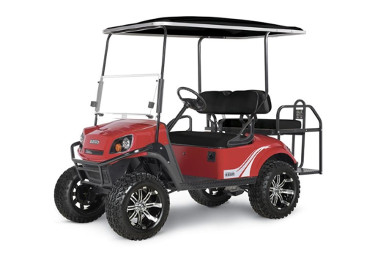

Every hour is an opportunity to live your life to the fullest, and the E-Z-GO® Express™ S4 ensures you’re doing just that.

Engine

Engine 4-cycle
Displacement 24.5 cu in (401 cc)
Cooling System Air Cooled
Engine Power 13.5 hp (10.1 kW) Exceeds SAE J1940 Std.
Valve train Single cylinder OHV
Air Cleaner Replaceable Dry Cartridge
Lubrication Pressurized Oil System
Oil Filter Spin-On

Fuel System

Fuel System Closed-Loop Electronic Fuel Injection

Performance

Top Speed 19.5 mph ± 0.5 mph (31.4 kph ± 0.8 kph)

Electric

Electrical System: Starter/Generator, Solid State Regulator

Battery

Battery One 12 Volt, Maintenance Free

Drivetrain

Drivetrain Continuously Variable Transmission (CVT)
Transmission Differential with Helical Gears
Gears Dash Mounted Forward-Neutral-Reverse
Axle Capacity, Rear Ratio: 11.47:1 (Forward) | 14.35:1 (Reverse)
Steering Self-Compensating Rack and Pinion
Starter Pedal

Chassis

Chassis Body Finish: Injection-molded TPO
Frame Type E-shield Enhanced Coating

Suspension

Front Suspension Leaf Springs with Hydraulic Shock Absorbers
Rear Suspension Leaf Springs with Hydraulic Shock Absorbers

Brakes

Brake System Type Rear Wheel Mechanical Self-adjusting Drum
Parking Brake Self-Compensating, Single-Point Engagement

Wheels & Tires

Front Wheel Track: 38.0 in (97 cm)
Rear Wheel Track: 38.5 (98 cm)
Front Tire Desert Eagle 23 x 10 - 14 on Alloy Wheel
Rear Tire Desert Eagle 23 x 10 - 14 on Alloy Wheel

Dimensions

Dimensions Outside Clearance Circle: 19 ft (5.8 m)
Overall Length 118 in (300 cm)
Overall Width 48.5 in (123 cm)
Overall Height Without roof: 52.5 in (133 cm) | With roof: 82.0 in (208 cm)
Wheelbase 65.5 in (166 cm)
Ground Clearance 7.0 in (18 cm)

Capacities

Fuel Capacity 5.96 gallons (22.6 L) Tank
Seating Capacity 4-Passenger
Cargo Capacity 800 lb (360 kg)




Green Factors

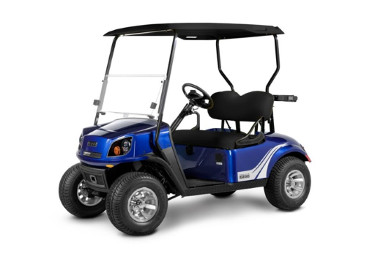

• Cruise the neighborhood in style. The 72-volt Freedom® boasts a modern body, higher ground clearance, and the added power of E-Z-GO’s exclusive 72-volt AC powertrain. With enhanced sport-inspired handling and boosted energy efficiency, you can go farther than ever before. The 72-volt Freedom will get you to your happy place, and back again.

Motor

Power System Type 72 Volt DC
Motor Power 22.4 HP (16.7 kW)
Motor Controller Speed: 350 Amp

Performance

Top Speed 19.5 mph (31.4 kph)

Electric

Electrical System: 72 Volt

Battery

Battery Six, 12 Volt Deep Cycle
Battery Charger Type 72 V, 1500 W

Drivetrain

Drivetrain Motor Shaft Direct Drive
Transmission Hardened Helical Gears
Gears Body Mounted FNR
Axle Capacity, Rear Ratio: 17:1
Steering Self-Compensating Rack and Pinion
Starter Pedal

Chassis

Chassis Body Finish: Injection Molded TPO
Frame Type Welded Steel with Powder-Coat Protection

Suspension

Front Suspension Leaf Springs with Hydraulic Shock Absorbers
Rear Suspension Leaf Springs with Hydraulic Shock Absorbers

Brakes

Brake System Type Rear Wheel Mechanical Self-Adjusting Drum
Parking Brake Self-Compensating, Single Point Engagement

Wheels & Tires

Front Wheel Track: 35 in. (86 cm)
Rear Wheel Track: 39 in. (99 cm)
Front Tire 205/65 10 LOADSTAR 4-Ply
Rear Tire 205/65 10 LOADSTAR 4-Ply

Dimensions

Dimensions Outside Clearance Circle: 19 ft. (5.8 m)
Overall Length 93.5 in. (237 cm)
Overall Width 49.5 in. (126 cm)
Overall Height Without roof: 46.5 in. (118 cm) | With roof: 70.0 in. (178 cm)
Wheelbase 67 in. (170 cm)
Ground Clearance 5.75 in. (15 cm)

Capacities

Seating Capacity 2-Passenger
Cargo Capacity 500 lbs. (226 kg)



Every hour is an opportunity to live your life to the fullest, and the E-Z-GO® Express™ S4 ensures you’re doing just that.

Engine

Engine 4-cycle
Displacement 24.5 cu in (401 cc)
Cooling System Air Cooled
Engine Power 13.5 hp (10.1 kW) Exceeds SAE J1940 Std.
Valve train Single cylinder OHV
Air Cleaner Replaceable Dry Cartridge
Lubrication Pressurized Oil System
Oil Filter Spin-On

Fuel System

Fuel System Closed-Loop Electronic Fuel Injection

Performance

Top Speed 19.5 mph ± 0.5 mph (31.4 kph ± 0.8 kph)

Electric

Electrical System: Starter/Generator, Solid State Regulator

Battery

Battery One 12 Volt, Maintenance Free

Drivetrain

Drivetrain Continuously Variable Transmission (CVT)
Transmission Differential with Helical Gears
Gears Dash Mounted Forward-Neutral-Reverse
Axle Capacity, Rear Ratio: 11.47:1 (Forward) | 14.35:1 (Reverse)
Steering Self-Compensating Rack and Pinion
Starter Pedal

Chassis

Chassis Body Finish: Injection-molded TPO
Frame Type E-shield Enhanced Coating

Suspension

Front Suspension Leaf Springs with Hydraulic Shock Absorbers
Rear Suspension Leaf Springs with Hydraulic Shock Absorbers

Brakes

Brake System Type Rear Wheel Mechanical Self-adjusting Drum
Parking Brake Self-Compensating, Single-Point Engagement

Wheels & Tires

Front Wheel Track: 38.0 in (97 cm)
Rear Wheel Track: 38.5 (98 cm)
Front Tire Desert Eagle 23 x 10 - 14 on Alloy Wheel
Rear Tire Desert Eagle 23 x 10 - 14 on Alloy Wheel

Dimensions

Dimensions Outside Clearance Circle: 19 ft (5.8 m)
Overall Length 118 in (300 cm)
Overall Width 48.5 in (123 cm)
Overall Height Without roof: 52.5 in (133 cm) | With roof: 82.0 in (208 cm)
Wheelbase 65.5 in (166 cm)
Ground Clearance 7.0 in (18 cm)

Capacities

Fuel Capacity 5.96 gallons (22.6 L) Tank
Seating Capacity 4-Passenger
Cargo Capacity 800 lb (360 kg)




It’s time to immerse yourself in the amazing world around you with the Express™S4 ELiTE™. Powered by a proven, maintenance-free Samsung SDI lithium battery system and backed by an unprecedented 8-year warranty, the Express S4 ELiTE will propel your next adventure with a worry-free, energy efficient ride.

Motor

Power System Type 56 Volt AC
Motor Power 11.7 HP (8.7 kW) Peak
Motor Controller Speed: 235 Amp AC

Performance

Top Speed 17 mph ± 0.5 mph (27.4 kph ± 0.8 kph)

Electric

Electrical System: 56 Volt

Battery

Battery Two Lithium Ion 56 Volt
Battery Charger Type Light World Charger, ELiTE (3.3 vm [11 ft] Cord)

Drivetrain

Drivetrain Motor Shaft Direct Drive
Transmission Differential with Helical Gears
Gears Dash Mount Forward-Neutral-Reverse
Axle Capacity, Rear Ratio: 17:1
Steering Self-Compensating Rack and Pinion
Starter Pedal

Chassis

Chassis Body Finish: Injection Molded TPO
Frame Type E-shield™ Enhanced Coating

Suspension

Front Suspension Leaf Springs with Hydraulic Shock Absorbers
Rear Suspension Leaf Springs with Hydraulic Shock Absorbers

Brakes

Brake System Type Rear Wheel Mechanical Self-Adjusting Drum
Parking Brake Self-Compensating, Single Point Engagement

Wheels & Tires

Front Wheel Track: 38.0 in (97 cm)
Rear Wheel Track: 38.5 in (98 cm)
Front Tire Desert Eagle 23 x 10 - 14 on Alloy Wheel
Rear Tire Desert Eagle 23 x 10 - 14 on Alloy Wheel

Dimensions

Dimensions Outside Clearance Circle: 20.3 ft (7.1 m)
Overall Length 116 in. (295 cm)
Overall Width 48.5 in (123 cm)
Overall Height Without roof: 52.5 in (133 cm) | With roof: 82 in (208 cm)
Wheelbase 65.5 in (166 cm)
Ground Clearance 7 in (18cm)

Capacities

Seating Capacity 4-Passenger
Cargo Capacity 800 lb (360 kg)




Every hour is an opportunity to live your life to the fullest, and the E-Z-GO® Express™ S4 ensures you’re doing just that.

Motor

Power System Type 72 Volts AC
Motor Power 22.4 hp (16.7 kW) Peak

Performance

Top Speed 19.5 mph ± 0.5 mph (31.4 kph ± 0.8 kph) | Controller: 350 Amp AC

Electric

Electrical System: 72 Volt

Battery

Battery Six, 12 Volt Deep Cycle
Battery Charger Type 72 VDC Delta Q, 120/230 VAC, UL/CSA

Drivetrain

Drivetrain Motor Shaft Direct Drive
Transmission Differential with Helical Gears
Gears Dash-Mounted Forward-Neutral-Reverse
Axle Capacity, Rear Ratio: 17:1
Steering Self-Compensating Rack and Pinion
Starter Pedal

Chassis

Chassis Body Finish: Injection-molded TPO
Frame Type E-shield Enhanced Coating

Suspension

Front Suspension Leaf Springs with Hydraulic Shock Absorbers
Rear Suspension Leaf Springs with Hydraulic Shock Absorbers

Brakes

Brake System Type Rear Wheel Mechanical Self-Adjusting Drum
Parking Brake Self-Compensating, Single Point Engagement

Wheels & Tires

Front Wheel Track: 38.0 in (97 cm)
Rear Wheel Track: 38.5 in (98 cm)
Front Tire Desert Eagle 23 x 10 - 14 on Alloy Wheel
Rear Tire Desert Eagle 23 x 10 - 14 on Alloy Wheel

Dimensions

Dimensions Outside Clearance Circle: 19 ft (5.8 m)
Overall Length 118 in (300cm)
Overall Width 48.5 in (123 cm)
Overall Height Without roof: 52.5 in (133 cm) | With roof: 82.0 in (208 cm)
Wheelbase 65.5 in (166 cm)
Ground Clearance 7.0 in (18 cm) at differential

Capacities

Seating Capacity 4-Passenger
Cargo Capacity 800 lb (360 kg)





Outdo yourself by exploring more than ever before with the Express™ L6 series. With room for 6, rugged tires, and higher ground clearance, you’ll elevate everyone’s expectations for a smooth, stylish ride.

• Engine

  Engine 4-cycle
  Displacement 24.5 cu in (401 cc)
  Cooling System Air Cooled
  Engine Power 13.5 hp (10.1 kW) exceeds SAE J1940 standard
  Valve train Single Cylinder OHV
  Air Cleaner Replaceable Dry Cartridge
  Lubrication Pressurized Oil System
  Oil Filter Spin-on


  Fuel System

  Fuel System Closed-Loop Electronic Fuel Injection


  Performance

  Top Speed 19.5 mph +/- 0.5 mph (31.4 kph +/- 0.8 kph)


  Electric

  Electrical System: Starter/Generator - Solid State Regulator


  Battery

  Battery One, 12 Volt Maintenance Free


  Drivetrain

  Drivetrain Continuously Variable Transmission (CVT)
  Transmission Differential with Helical Gears
  Gears Dash Mounted Forward-Neutral-Reverse
  Axle Capacity, Rear 11.47:1 (Forward) | 14.35:1 (Reverse)
  Steering Self-Compensating Rack and Pinion
  Starter Pedal


  Chassis

  Chassis Body Finish: Injection Molded TPO
  Frame Type Welded Steel. DuraShield™ Powder Coat


  Suspension

  Front Suspension Leaf Springs with Hydraulic Shock Absorbers
  Rear Suspension Rear Wheel Mechanical Self-Adjusting Drum


  Brakes

  Brake System Type Self-Compensating, Single-Point Engagement


  Wheels & Tires

  Front Wheel Track: 37.5 in (95 cm)
  Rear Wheel Track: 38.5 in (98 cm)
  Front Tire Desert Eagle 23 x 10 - 14 on Alloy Wheel
  Rear Tire Desert Eagle 23 x 10 - 14 on Alloy Wheel


  Dimensions

  Dimensions Outside Clearance Circle: 25.5 ft (7.8 m)
  Overall Length 143.5 in (364 cm)
  Overall Width 48.5 in (123 cm)
  Overall Height Without roof: 53.5 in (136 cm) | With roof: 72 in (183 cm)
  Wheelbase 93.5 in (237 cm)
  Ground Clearance 7.0 in (18 cm)


  Capacities

  Fuel Capacity 5.96 Gallon (22.6 L) Tank
  Seating Capacity 6-Passenger
  Cargo Capacity 1200 lb (544 kg)



The Express™L6 ELiTE™ is fully loaded with technology like no other. Powered by a high-performing, energy-efficient Samsung SDI lithium battery system and backed by an incredible 8-year battery warranty, the Express L6 ELiTE will ignite your next adventure.

Motor

Power System Type 56 Volt AC
Motor Power 13.1 hp (9.8 kW) Peak

Performance

Top Speed 19.5 mph ± 0.5 mph (31.4 kph ± 0.8 kph) | Controller: 300 Amp AC

Electric

Electrical System: 56 Volt

Battery

Battery Three Lithium Ion 56 Volt
Battery Charger Type World Charger, ELiTE (10 ft Cord) UL/CSA

Drivetrain

Drivetrain Motor Shaft Direct Drive
Transmission Differential with Helical Gears
Gears Dash Mount Forward-Neutral-Reverse
Axle Capacity, Rear Ratio: 17:1
Steering Self-Compensating Rack and Pinion
Starter Pedal

Chassis

Chassis Body Finish: Injection Molded TPO
Frame Type Welded Steel with Powder-Coat Protection

Suspension

Front Suspension Leaf Springs with Hydraulic Shock Absorbers
Rear Suspension Leaf Springs with Hydraulic Shock Absorbers

Brakes

Brake System Type Rear Wheel Mechanical Self-Adjusting Drum
Parking Brake Self-Compensating, Single Point Engagement

Wheels & Tires

Front Wheel Track: 37.5 in (95 cm)
Rear Wheel Track: 38.5 in (98 cm)
Front Tire Desert Eagle 23 x 10 - 14 on Alloy Wheel
Rear Tire Desert Eagle 23 x 10 - 14 on Alloy Wheel

Dimensions

Dimensions Outside Clearance Circle: 25.5 ft (7.8 m)
Overall Length 137.5 in (349 cm)
Overall Width 48.5 in (123 cm)
Overall Height Without roof: 53.5 in (136 cm) | With roof: 72 in (183cm)
Wheelbase 93.5 in (237 cm)
Ground Clearance 7 in (18cm)

Capacities

Seating Capacity 6-Passenger
Cargo Capacity 1200 lb (544 kg)




Outdo yourself by exploring more than ever before with the Express™ L6 series. With room for 6, rugged tires, and higher ground clearance, you’ll elevate everyone’s expectations for a smooth, stylish ride.

Motor

Power System Type 72-Volt AC
Motor Power 22.4 HP (16.7 kW) Peak

Performance

Top Speed 19.5 mph +/- 0.5 mph (31.4 kph +/- 0.8 kph) | Controller: 350 Amp AC

Electric

Electrical System: 72-Volt

Battery

Battery Six, 12-Volt Deep Cycle
Battery Charger Type 72 VDC Delta Q, 120/230 VAC, UL & CSA

Drivetrain

Drivetrain Motor Shaft Direct Drive
Transmission Differential with Helical Gears
Gears Dash Mounted Forward-Neutral-Reverse
Axle Capacity, Rear Ratio: 17:1
Steering Self-Compensating Rack and Pinion
Starter Pedal

Chassis

Chassis Body Finish: Injection-molded TPO
Frame Type Welded Steel. DuraShield™ Powder Coat

Suspension

Front Suspension Leaf Springs with Hydraulic Shock Absorbers
Rear Suspension Leaf Springs with Hydraulic Shock Absorbers

Brakes

Brake System Type Rear Wheel Mechanical Self-Adjusting Drum
Parking Brake Self-Compensating, Single-Point Engagement

Wheels & Tires

Front Wheel Track: 37.5 in (95 cm)
Rear Wheel Track: 38.5 in (98 cm)
Front Tire Desert Eagle 23 x 10 - 14 on Alloy Wheel
Rear Tire Desert Eagle 23 x 10 - 14 on Alloy Wheel

Dimensions

Dimensions Outside Clearance Circle: 25.5 ft (7.8 m)
Overall Length 143.5 in (364 cm)
Overall Width 48.5 in (123 cm)
Overall Height Without roof: 53.5 in (136 cm) | With roof: 72 in (183 cm)
Wheelbase 93.5 in (237 cm)
Ground Clearance 7.0 in (18 cm)

Capacities

Seating Capacity 6-Passenger
Bed Capacity Load: 25.5 ft (7.8 m)
Cargo Capacity 1200 lb (544 kg)
