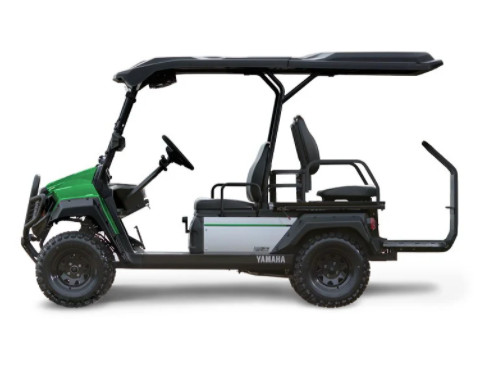

Authorized Dealer

see the difference when power, performance, versatility, and comfort matter.

EFI

• FUEL SYSTEM:EFI - Electronic Fuel Injection
• ENGINE TYPE:Yamaha-built, 402 cc, low-emission single cylinder 60° incline OHV
• LUBRICATION SYSTEM:Splash-style positive oil lubrication
• OIL CAPACITY:1.16 U.S. quart (1.1 liter, 1100cc)
• AIR CLEANER:Two-stage, urethane-foam pre-cleaner, and high-capacity pleated paper cartridge
• COOLING SYSTEM:Forced Cooling
• STARTING SYSTEM:Starter generator with pedal start system

Dimensions

• OVERALL LENGTH 134.37 in (341.3 cm)
• OVERALL WIDTH 53.54 in (136 cm)
• OVERALL HEIGHT(with suntop) 77.20 in (196.1 cm)
• OVERALL HEIGHT(without suntop) 57.48 in (146 cm)
• WHEELBASE 77.28 in (196.3 cm)
• FRONT WHEEL TREAD 41.26 in (104.8 cm)
• REAR WHEEL TREAD 41.26 in (104.8 cm)
• MINIMUM GROUND CLEARANCE 5.94 in (15.1cm)

FRAME HybriCore™ chassis features a robotic welded automotive ladder-style steel frame protected with a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatic applied polyester/urethane powder topcoat.

BODY Custom-formulated thermoplastic olefin painted with a two-part top coat of high-luster automotive-grade polyurethane.

STEERING Self-compensating double reduction helical rack-and-pinion.

FRONT WHEEL SUSPENSION Tru-Trak II™ fully independent automotive-style strut suspension.

REAR WHEEL SUSPENSION Unit swing arm with DUAL RATE coil springs over hydraulic shock absorbers.

BRAKES Self-adjusting mechanical, rear wheel drum brakes.

PERFORMANCE

MAXIMUM FORWARD SPEED 15 mph (24.1 km/h)

MAXIMUM REVERSE SPEED 3.98m

GENERAL

• DRY WEIGHT EFI: 1321 lb (599 kg) - AC: 1212 lb (550 kg)
• TOWING CAPACITY 1,200 lb
• FUEL TANK CAPACITY (GAS) 5.2 US GAL (20 LITERS)
• TIRE SIZE 23x10.5-12 4-ply Monitor K389 (front) K500 (rear)
• SEATING CAPACITY Four persons
• AVAILABLE MODEL COLORS Glacier Metallic: Jasper, Carbon, Aqua Blue, Noble Orange, Evergreen
• AVAILABLE SEAT COLOR Black
• AVAILABLE SUNTOP COLOR Black

WARRANTY

Standard 2-year limited vehicle warranty

With six color options, luxurious bucket seats, under hood storage compartment, and large 20" tires, you can see the difference when power, performance, versatility, and comfort matter.

EFI

• FUEL SYSTEM:EFI - Electronic Fuel Injection
• ENGINE TYPE:Yamaha-built, 402 cc, low-emission single cylinder 60° incline OHV
• LUBRICATION SYSTEM:Splash-style positive oil lubrication
• OIL CAPACITY:1.16 U.S. quart (1.1 liter, 1100cc)
• AIR CLEANER:Two-stage, urethane-foam pre-cleaner, and high-capacity pleated paper cartridge
• COOLING SYSTEM:Forced Cooling
• STARTING SYSTEM:Starter generator with pedal start system

Dimensions

• OVERALL LENGTH 111.45 in (283.1 cm)
• OVERALL WIDTH 49.33 in (125.3 cm
• OVERALL HEIGHT(with suntop) 74.02 in (188 cm)
• OVERALL HEIGHT(without suntop) 48.54 in (123.3 cm)
• WHEELBASE 66.18 in (168.1 cm)
• FRONT WHEEL TREAD 39.96 in (101.5 cm)
• REAR WHEEL TREAD 40.19 in (102.1 cm)
• MINIMUM GROUND CLEARANCE 4.56 in (11.6 cm)

FRAME HybriCore™ chassis features a robotic welded automotive ladder-style steel frame protected with a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatic applied polyester/urethane powder topcoat.

BODY Custom-formulated thermoplastic olefin painted with a two-part top coat of high-luster automotive-grade polyurethane.

STEERING Self-compensating double reduction helical rack-and-pinion.

FRONT WHEEL SUSPENSION Tru-Trak II™ fully independent automotive-style strut suspension.

REAR WHEEL SUSPENSION Unit swing arm with DUAL RATE coil springs over hydraulic shock absorbers.

BRAKES Self-adjusting mechanical, rear wheel drum brakes.

PERFORMANCE

MAXIMUM FORWARD SPEED 19.5 mph (31.4 km/h)

MAXIMUM REVERSE SPEED 17.5 mph (28 km/h)

MINIMUM TURNING RADIUS 3.48 m

GENERAL

• DRY WEIGHT 961.2 lb (436 kg)
• CARGO BED CAPACITY 300 lbs
• TOWING CAPACITY 800 lbs
• CARGO BED SIZE 33.2" L x 45.9" W x 11.9" H
• FUEL TANK CAPACITY (GAS) 5.2 US GAL (20 LITERS)
• TIRE SIZE 20x10x10 4ply Monitor K389 (front) K500 (rear)
• SEATING CAPACITY 2 persons
• AVAILABLE MODEL COLORS Glacier Metallic: Jasper, Carbon, Aqua Blue, Noble Orange, Evergreen
• AVAILABLE SEAT COLOR Black
• AVAILABLE SUNTOP COLORBlack

WARRANTY

Standard 2-year limited vehicle warranty

Whether picking up VIPs at a private airport, or escorting guests on a factory tour, our four- and six-seat Concierge models will impress even the most discerning passengers. With a smooth, quiet ride, and the widest, most comfortable seats in the industry, these vehicles provide a truly first-class experience.

Engine

Engine Type Yamaha-built, 357 cc, low-emission single cylinder 60° incline OHV
Cooling System Forced Cooling
Lubrication Splash-style positive oil lubrication
Air Cleaner Two-stage, urethane-foam pre-cleaner, and high-capacity pleated paper cartridge
Starter Starter generator with pedal start system

Performance

Top Speed Maximum Forward: 19 mph (31 km/h)

Fuel System

Fuel System EFI - Electronic Fuel Injection

Drivetrain

Steering Self-compensating double reduction helical rack-and-pinion.

Chassis

Frame Type HybriCore™ Chassis features a robotically welded automotive ladder-style frame mated to a polypropylene structural floor. Frame components are protected with a multi-step phosphate treatment, electro-deposition epoxy-based coating, and an electro statically applied polyester/urethane powder topcoat.
Chassis Body: Custom-formulated thermoplastic olefi n and the front is painted with a two-part top coat of high-luster automotive-grade polyurethane.

Suspension

Front Suspension Tru-Trak II™ fully independent automotive-style strut suspension.
Rear Suspension Unit swing arm with coil springs over hydraulic shock absorbers.

Brakes

Brake System Type Self-adjusting, mechanical rear drum.

Wheels & Tires

Front Wheel Tread: 870 mm (34.3 in)
Rear Wheel Tread: 980 mm (38.6 in)
Front Tire 205/65-10 DOT (4-ply rating)
Rear Tire 205/65-10 DOT (4-ply rating)

Dimensions

Overall Length 3250 mm (128 in)
Overall Width 1200 mm (47.2 in)
Overall Height With Suntop: 1910 mm (75.2 in) | Without Suntop: 1222 mm (48.1 in)
Wheelbase 2492 mm (98.1 in)
Ground Clearance Minimum: 148 mm (5.8 in)
Floor Height Board: 342 mm (13.5 in)

Capacities

Oil capacity 1 U.S. quart (1 liter, 1,000 cc)
Fuel Capacity 5.2 US GAL (20 LITERS)

Weights

Seating Capacity 4 persons
Dry Weight 349 kg (767 lbs) w/o suntop and batteries 519 kg (1144 (lbs) w/ Trojan T-875 batteries

Color

Colors Glacier, Emerald, Tanzanite, Sandstone Metallic, Moonstone Metallic, Onyx Metallic, Jasper Metallic | Seat: Standard: Stone Optional: Black | Suntop: Stone, White, Black

Features

Features Bumpers: Front and rear 5 mph energy-absorbing bumpers.
Seat Type Seamless, fabric-backed vinyl bonded to pure, virgin foam contoured seat cushions and matted to a warp and moisture-resistant polypropylene bottom strengthened with plated steel inserts.

Warranty

Warranty Standard 2-year limited vehicle warranty.

Over the river and through the neighborhoods, it’s off to fun we go. The new Adventurer Sport 2+2 is as comfortable dropping kids off at baseball practice as it is scooting over to the park. Whatever challenges your day may hold, with the Adventurer Sport 2+2, you’ll have plenty of strength to conquer them.

Motor

Motor Type 48-volt AC Motor
Motor Controller Toyota Industries-built motor controller unit.
Top Speed 6.7 hp (5.0 kw)

Battery

Battery Standard: Six 8-volt Motive T-875 FLA batteries | Optional: Six 8-volt Motive T875-AGM batteries.
Battery Charger Type Delta-Q Charger

Drivetrain

Steering Self-compensating double reduction helical rack-and-pinion, permanently lubricated with sealed bearings and greaseless tie-rod ends.

Chassis

Chassis Body: Custom-formulated thermoplastic olefin, painted with a two-part topcoat of high-luster automotive grade polyurethane.
Frame Type HybriCore™ Chassis features a robotic welded automotive ladder-style steel frame mated to a polypropylene structural floor. Frame is protected withelectro-deposition epoxy-based coating and a electrostatic applied polyester/urethane powder topcoat.

Suspension

Front Suspension Tru-Trak II™ fully independent automotive-style strut suspension.
Rear Suspension Unit swing arm with coil springs over hydraulic shock absorbers.

Brakes

Brake System Type Self adjusting rear drum.

Wheels & Tires

Front Wheel Tread: 41.26 in (104.8 cm)
Rear Wheel Tread: 41.26 in (104.8 cm)
Front Tire 20.00 x 10.00-8.00 (4-ply rating)
Rear Tire 20.00 x 10.00-8.00 (4-ply rating)

Dimensions

Overall Length 2765 mm (108.9 in)
Overall Width 1294 mm (50.9 in)
Overall Height With Suntop: 1270 mm (50.0 in) | Whithout Suntop: 57.48 in (146 cm)
Wheelbase 1643 mm (64.7 in)
Ground Clearance Minimum: 135 mm (5.3 in)
Floor Height Board: 365 mm (14.4 in)

Capacities

Fuel Capacity 22.0 liters (5.8 U.S. gal)
Seating Capacity 4 persons
Cargo Capacity Bed: 800 lbs.
Towing Capacity 1,200 lb

Weights

Dry Weight 358 kg (788.1 lbs)

Color

Colors Glacier, Onyx Metallic, Moonstone Metallic, Jasper Metallic, Larimar Metallic | Seat: Standard: Stone Optional: Black | Suntop: White, Stone, Black

Features

Features Bumpers: Front 5 mph energy-absorbing bumper.
Seat Type Front: Seamless, fabric-backed vinyl bonded to pure, virgin foam contoured seat cushions and mated to a warp and moisture-resistant polypropylene bottom, strengthenedwith plated steel insertsRear: Hinged seating platform with vinyl covered seat bottom cushion and contoured backrest.

Warranty

• Warranty Standard 2-year limited vehicle warranty

Electric & Gas

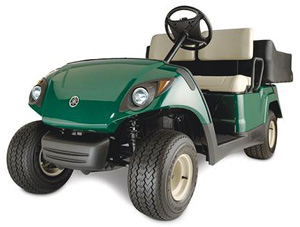

Hard work beware. Inside the Adventurer One beats the adrenaline-charged heart of The DRIVE®, the Yamaha vehicle designed not only to be the most comfortable, dependable golf car ever built, but also the least expensive to maintain.

Similarities aside, the Adventurer One was built for work. And despite its rugged good looks, the Adventurer is ready to handle your most daunting tasks without even breaking a sweat. So whether you're watering your newly planted shrubs, dragging the infield, maintaining the campus, moving supplies to the marina or fly fishing in the great outdoors, take comfort in knowing the Adventurer One will work as hard as you do.

Features & Benefits

• Utility Dump Bed
• Maintenance-Free Rack-and-Pinion Steering
• Durable, Flexible Body Panels
• Halogen Headlights & Tail Lights
• Tru-Trak II™ Fully Independent Front Suspension
• HybriCore™ Chassis
• EnduraDrive™ Transaxle with Internal Disk Brake Technology
• Powerful 48-Volt Electric Motor or Yamaha 357F Gas Engine

Electric & Gas

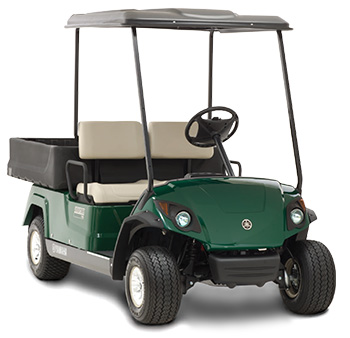

When you need a little something extra, the Adventurer two comes through. Its 800 lb. payload capacity, beefed up transaxle and four wheel drum brakes means it goes where you and your stuff want to go, all with comfort and security. Across campus or a secluded valley, this big brother of a hauler will take you there.

Features & Benefits

• 800 lb. Payload Capacity
• Utility Dump Bed
• Maintenance-Free Rack-and-Pinion Steering
• Durable, Flexible Body Panels
• Halogen Headlights & Tail Lights
• Tru-Trak II™ Fully Independent Front Suspension
• HybriCore™ Chassis
• EnduraDrive™ Transaxle with Internal Disk Brake Technology
• Powerful 48-Volt Electric Motor or Yamaha 357F Gas Engine

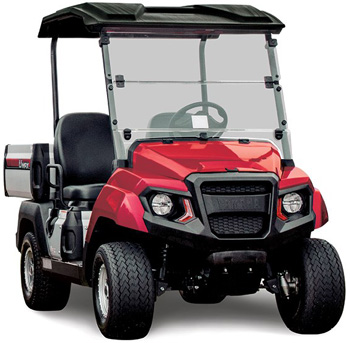

We harnessed the speed of our motorcycles, the power of our WaveRunners®, the durability of our outboard motors, the pure grit of our all-terrain vehicles, and the skillfully engineered quietness of our golf cars to create the new UMAX Rally™ with a lifted suspension, 23" tires wrapped around 12" V- window wheels, and complete with a Yamaha Genuine front brush guard and deFender fender flares. Wether it's for the farm, construction site, warehouse, or campus, the UMAX Rally goes where no other Light Utility Vehicle can making it yet another reason why Yamaha is The Easy Choice™.

Motor

Motor Type 48-volt AC Motor
Motor Controller Toyota Industries-built motor controller unit.
Top Speed 6.7 hp (5.0 kw)

Battery

Battery Standard: Six 8-volt Motive T-875 FLA batteries | Optional: Six 8-volt Motive T875-AGM batteries.
Battery Charger Type Delta-Q Charger

Drivetrain

Steering Self-compensating double reduction helical rack-and-pinion.

Chassis

Chassis Body: Custom-formulated thermoplastic olefin painted with a two-part top coat of high-luster automotive-grade polyurethane. | Cargo box Material: Aluminium
Frame Type HybriCore™ chassis features a robotic welded automotive ladder-style steel frame protected with a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatic applied polyester/urethane powder topcoat.

Suspension

Front Suspension Tru-Trak II™ fully independent automotive-style strut suspension.
Rear Suspension Unit swing arm with heavy duty coil springs over hydraulic shock absorbers.

Brakes

Brake System Type Self-adjusting mechanical, front and rear wheel drum brakes.

Wheels & Tires

Front Wheel Tread: 41.3 in (104.8 cm)
Rear Wheel Tread: 41.3 in (104.8 cm)
Front Tire 23x10.5x12 6ply
Rear Tire 23x10.5x12 6ply

Dimensions

Overall Length 122.6 in (311.3 cm)
Overall Width 53.54 in (136 cm)
Overall Height With Suntop: 74.02 in (188 cm) | Whithout Suntop: 50.70 in (128.8 cm)
Wheelbase 77.3 in (196.3 cm)
Ground Clearance Minimum: 6.0 (152 mm)
Floor Height Board: 15.23 (387 mm)
Bed Box Dimensions (LxWxH) 41.1" L x 45.9" W x 11.9" H

Capacities

Fuel Capacity 5.2 US GAL (20 LITERS)
Seating Capacity 2 Persons
Cargo Capacity Bed: 800 lbs.
Towing Capacity 1500 lbs.

Weights

Dry Weight 1070.3 lb (485.5 kg)

Color

Colors Glacier Metallic: Jasper, Carbon, Aqua Blue, Noble Orange, Evergreen | Seat: Black | Suntop: Black

Warranty

Warranty Standard 2-year limited vehicle warranty

Contact

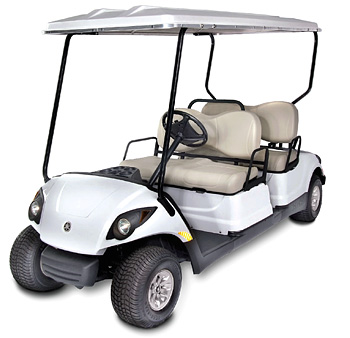

When your guests arrive, you want to make a lasting first impression. Knowing that, we’ve outfitted both our four and six-seat Concierge models with a wealth of features to impress even the most discerning passengers. Thanks to extra-smooth handling and a quiet ride, plus the widest bench seats in the industry, it’s first-class luxury that sets the stage for a memorable visit.


Engine

Engine Type Yamaha-built, 357 cc, low-emission single cylinder 60° incline OHV
Cooling System Forced Cooling
Lubrication Splash-style positive oil lubrication
Air Cleaner Two-stage, urethane-foam pre-cleaner, and high-capacity pleated paper cartridge
Starter Starter generator with pedal start system

Performance

Top Speed Maximum Forward: 19 mph (31 km/h)

Fuel System

Fuel System EFI - Electronic Fuel Injection

Drivetrain

Steering Self-compensating double reduction helical rack-and-pinion, permanently lubricated with sealed, greaseless tie-rod ends.

Chassis

Frame Type HybriCore™ Chassis features a robotically welded automotive ladder-style frame mated to a polypropylene structural floor. Frame components are protected with a multi-step phosphate treatment, electro-deposition epoxy-based coating, and an electrostatically applied polyester/urethane powder topcoat.
Chassis Body: Custom-formulated thermoplastic olefi n and the front is painted with a two-part top coat of high-luster automotive-grade polyurethane.

Suspension

Front Suspension Tru-Trak II™ fully independent automotive-style strut suspension.
Rear Suspension Unit swing arm with coil springs over hydraulic shock absorbers.

Brakes

Brake System Type Self-adjusting, mechanical rear drum.

Wheels & Tires

Front Wheel Tread: 870 mm (34.3 in)
Rear Wheel Tread: 980 mm (38.6 in)
Front Tire 205/65-10 DOT (4-ply rating)
Rear Tire 205/65-10 DOT (4-ply rating)

Dimensions

Overall Length 4100 mm (161.4 in)
Overall Width 1200 mm (47.2 in)
Overall Height With Suntop: 1910 mm (75.2 in) | Without Suntop: 1190 mm (46.9 in)
Wheelbase 3337 mm (131.4 in)
Ground Clearance Minimum: 110 mm (4.3 in)
Floor Height Board: 342 mm (13.5 in)
Turning Radius 18.7 ft (5.7m)

Capacities

Oil capacity 1 U.S. quart (1 liter, 1,000 cc)
Fuel Capacity 5.2 US GAL (20 LITERS)

Weights

Seating Capacity 6 persons
Dry Weight 458 kg (1010 lbs)

Color

Colors Glacier, Emerald, Tanzanite, Sandstone Metallic, Moonstone Metallic, Onyx Metallic, Jasper Metallic | Seat: Standard: Stone Optional: Black | Seat: Stone, White, Black

Features

Features Bumpers: Front and rear 5 mph energy-absorbing bumpers.
Seat Type Seamless, fabric-backed vinyl bonded to pure, virgin foam contoured seat cushions and matted to a warp and moisture-resistant polypropylene bottom strengthened with plated steel inserts.

Warranty

Warranty Standard 2-year limited vehicle warranty
